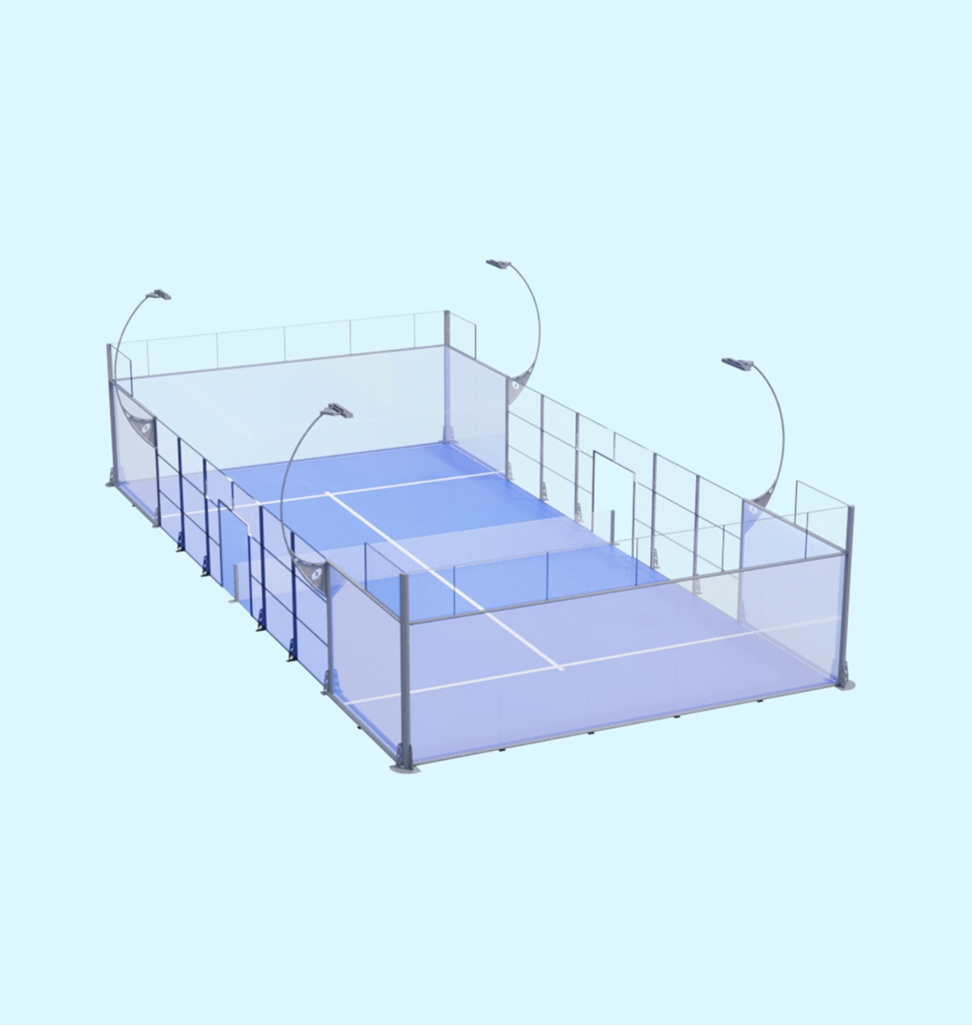

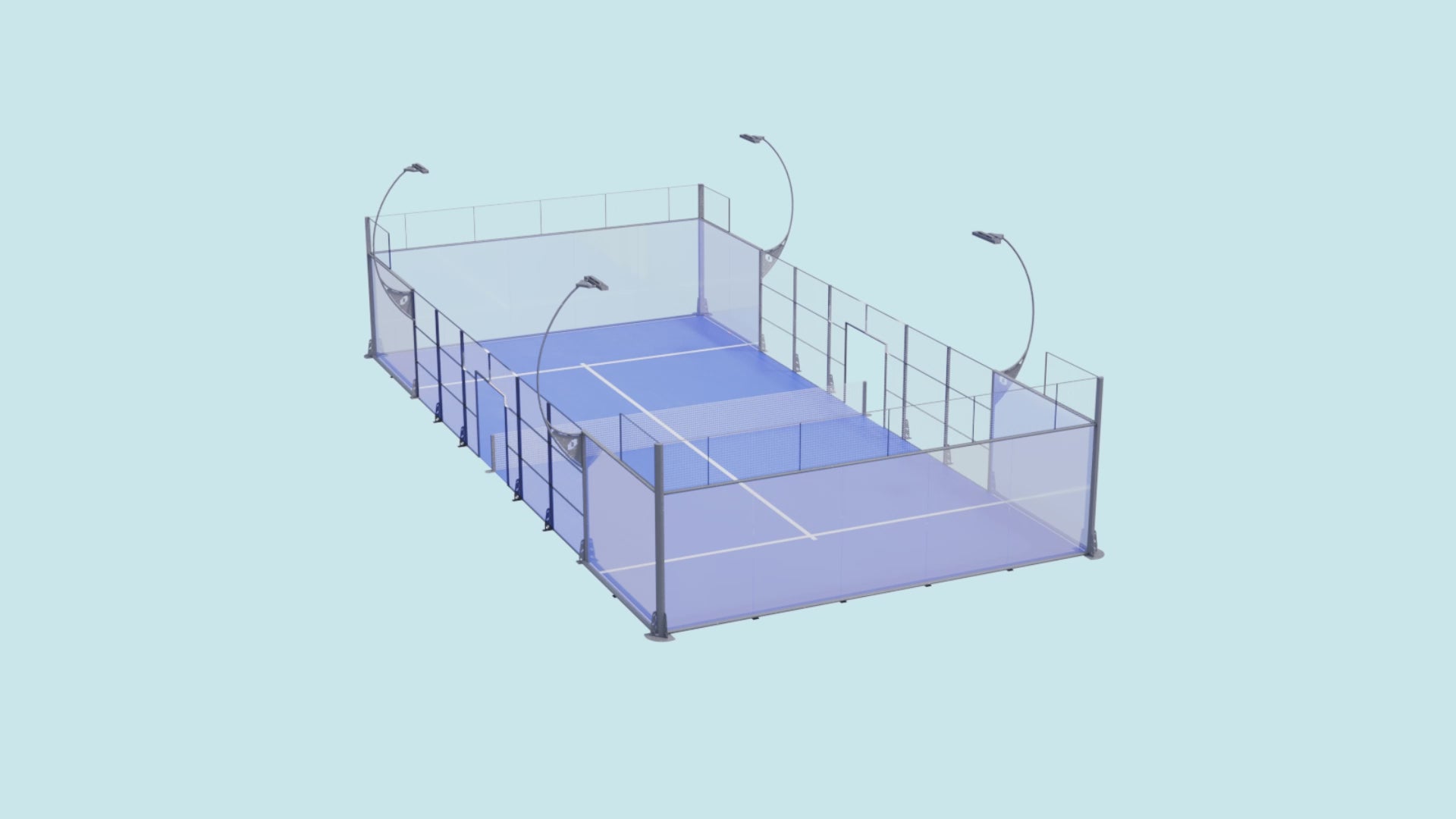

Circular panoramic court with no visible pillars, ideal for maximum aesthetics and visibility.
APS Panoramic
*Pricing is customized according to client needs.*
General Dimensions
General Dimensions
Regulation size: 20 m long x 10 m wide.
Clear height: Minimum 6 m, no obstructions.
Recommended safety perimeter: 1.5–2 m clearance around the court
Metal Structure
Metal Structure
Type: Panoramic portico with steel frames and lateral glass without intermediate posts.
Steel: S275 grade or higher.
Finish: Hot-dip galvanized + thermoset powder coating (minimum 60 microns).
Standard colors: Green RAL 6005, Blue RAL 5005, Black RAL 9005 (custom colors on request).
Posts and beams:
- Minimum section 80x80 mm or 100x50 mm, depending on design.
- Reinforced corners and porticos for extra stability.
Glass Panels and Mesh
Glass Panels and Mesh
Tempered safety glass: 12 mm (minimum according to regulations).
Back walls: panels approx. 3 m wide x 2 m high.
Side panoramic sections: no intermediate posts in central areas
Certification: Must comply with UNE-EN 12150 or equivalent ASTM standards.
Type: Welded steel mesh with reinforced tubular frame.
Grid size: 50x50 mm or 50x60 mm.
Wire thickness: Ø 3–4 mm.
Finish: Galvanized and powder coated.
Artificial Turf
Artificial Turf
Recommended brand: Mondo or equivalent
professional-grade turf.
Pile height: 10–13 mm (monofilament or fibrillated,
green/blue).
Infill: Washed, rounded silica sand (10–12 kg/m²).
Base: Geotextile + drainage system.
Lighting
Lighting
Poles: 4 or 8, minimum height 6 m.
Luminaires: LED, minimum 200 lux for recreational use, 500–750 lux for competition.
Typical power: 200–300 W per fixture.
Accessories
2 access doors (minimum 1.05 m wide).
Protective padding on frames and posts (optional).
Regulatory signage.
